What's the Max Distance Between Solar Panels and Inverter?

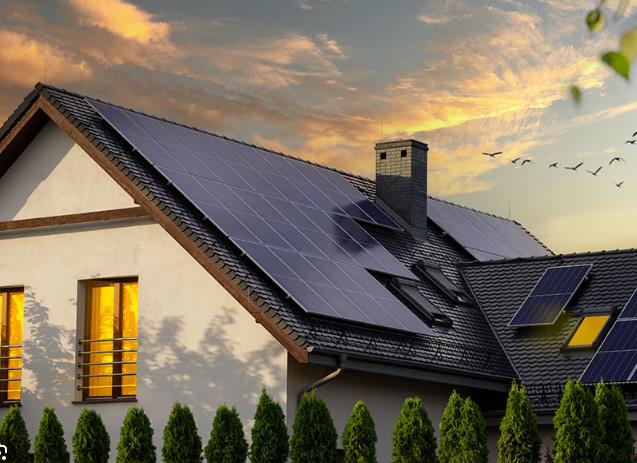

What's the Max Distance Between Solar Panels and Inverter? When setting up a solar power system, one critical question often arises: What's the maximum distance that can be maintained between solar panels and the inverter to ensure efficiency and minimize power loss? This query doesn't have a one-size-fits-all answer, as it depends on several factors, including the system's voltage, wire size, and overall system design. However, by delving into the specifics, we can outline guidelines to help optimize your solar setup. [caption id="attachment_4169" align="aligncenter" width="637"] What's the Max Distance Between Solar Panels and Inverter?[/caption] Understanding Voltage Drop and Its Impact The concept of voltage drop is central to determining the max distance between solar panels and an inverter. Voltage drop refers to the decrease in voltage that occurs as electrical current travels through the wires. It's a critical factor because excessive voltage drop can lead to inefficiencies and reduced power output from your solar array. Optimal Distance Guidelines Generally, keeping the voltage drop below 3% is advisable to maintain system efficiency. For a typical residential solar system, this requirement translates into specific distance limits based on the system's voltage and the wire gauge used.

• 12V Systems: For lower voltage systems, the recommended maximum distance is relatively short, often no more than 20 feet, especially if you're using smaller wire sizes like 10 or 12 AWG.
• 24V and 48V Systems: Higher voltage systems allow for longer distances due to their lower current for the same power level. Distances of up to 100 feet can be acceptable when using larger wire sizes, such as 2 or 4 AWG.

Calculating the Exact Distance To determine the max distance between solar panels and inverter with precision, you'll need to consider the specific details of your installation, including:

• The total wattage of your solar panels
• The voltage of your solar system
• The amperage your system will produce at peak sunlight
• The gauge (thickness) of the wire you plan to use

Using these parameters, you can employ voltage drop calculators available online to input your system's details and calculate the maximum distance without exceeding the 3% voltage drop threshold. Max distance between solar panels and inverter: While generic guidelines provide a starting point, leveraging tools that factor in the unique aspects of your system ensures optimal placement and efficiency. Selecting the Right Wire Gauge A pivotal aspect of maximizing the distance between your solar panels and inverter while minimizing voltage drop is choosing the appropriate wire size. Larger gauge wires (which have a smaller AWG number) have less resistance and allow for longer distances between your solar panels and inverter. Consulting wire gauge charts can help you make an informed decision based on the current your system will carry and the total length of the wire. Professional Insight for Custom Solutions Given the complexity and variability in solar power systems, consulting with a solar energy professional can provide tailored advice specific to your needs. Experts can offer insights into the best system design, wire selection, and component placement to ensure your solar installation is both efficient and compliant with local regulations. Final Thoughts While the distance between solar panels and an inverter can significantly impact system efficiency, careful planning and consideration of the factors mentioned can help maximize your solar power system's performance. Remember, the goal is to reduce voltage drop, optimize efficiency, and ensure your solar setup delivers maximum power output for years to come.
